Pioneer Marine Refrigeration and HVAC

Pioneer Marine

Our Containers

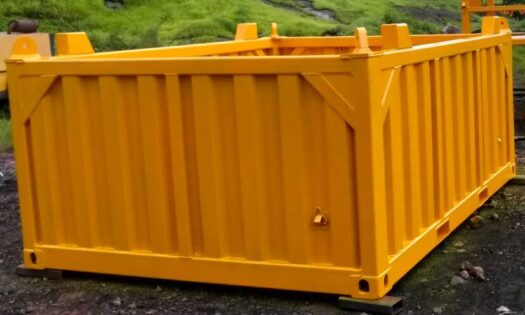

Half Height Baskets

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Waste Skips

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Close Top Containers

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

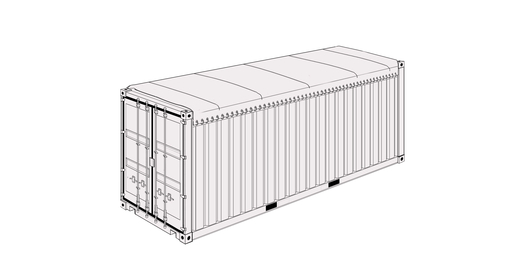

Open Top Containers

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

Details:

specifically designed to carry heavy cargo that is best loaded from above or for cargo that exceeds the height of the container commonly known as "out of gauge"
removable tarpaulin, removable roof bows
roof opening may vary depending on type of construction
some models also have a swinging header (rear top rail) to facilitate easier loading operations

inside dimensions
length mm	5888
length ft	19' 3 3/4''
width mm	2345
width ft	7' 8 1/8''
height mm	2315
height ft	7' 7 1/8''
capacity cbm	32
capacity cbft	1130

weights
tare kg	2250
tare pd	4960
max. payload kg	28230
max. payload pd	62240
max. gross kg	30480
max. gross pd	67200

certification
ISO size type	22U1
ISO size group	22UT

outside dimensions
length mm	6058
length ft	19' 10 1/2"
width mm	2438
width ft	8'
height mm	2591
height ft	8' 6"

door opening
width mm	2335
width ft	7' 8''
height mm	2280
height ft	7' 5 3/4''
width side door mm	./.
width side door ft	./.
height side door mm	./.
height side door ft	./.

roof opening
height mm	2205
height ft	7' 2 3/4''
width mm	5415
width ft	17' 9 1/8''

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:

We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Server Room Containers

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Lab Containers

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Accommodation Units

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Office Containers

This container type has a removable tarpaulin cover and moveable rear top rail enabling the container to be loaded from above.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

Dry Containers

This is the most versatile of all container types and can be used for the storage and transport of a wide range of goods.

Details:

opens at the rear and has two leaf doors
suitable for transport and storage
primarily used to transport general cargo and most suitable for unit loads
often referred to as general purpose as they are able to carry most goods
other terms: Dry Cargo Container, Standard Container or Box

inside dimensions
length mm	5895
length ft	19' 4 1/8''
width mm	2350
width ft	7' 8 1/2''
height mm	2392
height ft	7' 10 1/8''
capacity cbm	33,2
capacity cbft	1172

weights
tare kg	2250
tare pd	4960
max. payload kg	28230
max. payload pd	62240
max. gross kg	30480
max. gross pd	67200

certification
ISO size type	22G1
ISO size group	22GP

outside dimensions
length mm	6058
length ft	19' 10 1/2"
width mm	2438
width ft	8' 0"
height mm	2591
height ft	8' 6"

door opening
width mm	2340
width ft	7' 8 1/8''
height mm	2280
height ft	7' 5 3/4''
width side door mm	./.
width side door ft	./.
height side door mm	./.
height side door ft	./.

roof opening
height mm	./.
height ft	./.
width mm	./.
width ft	./.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.

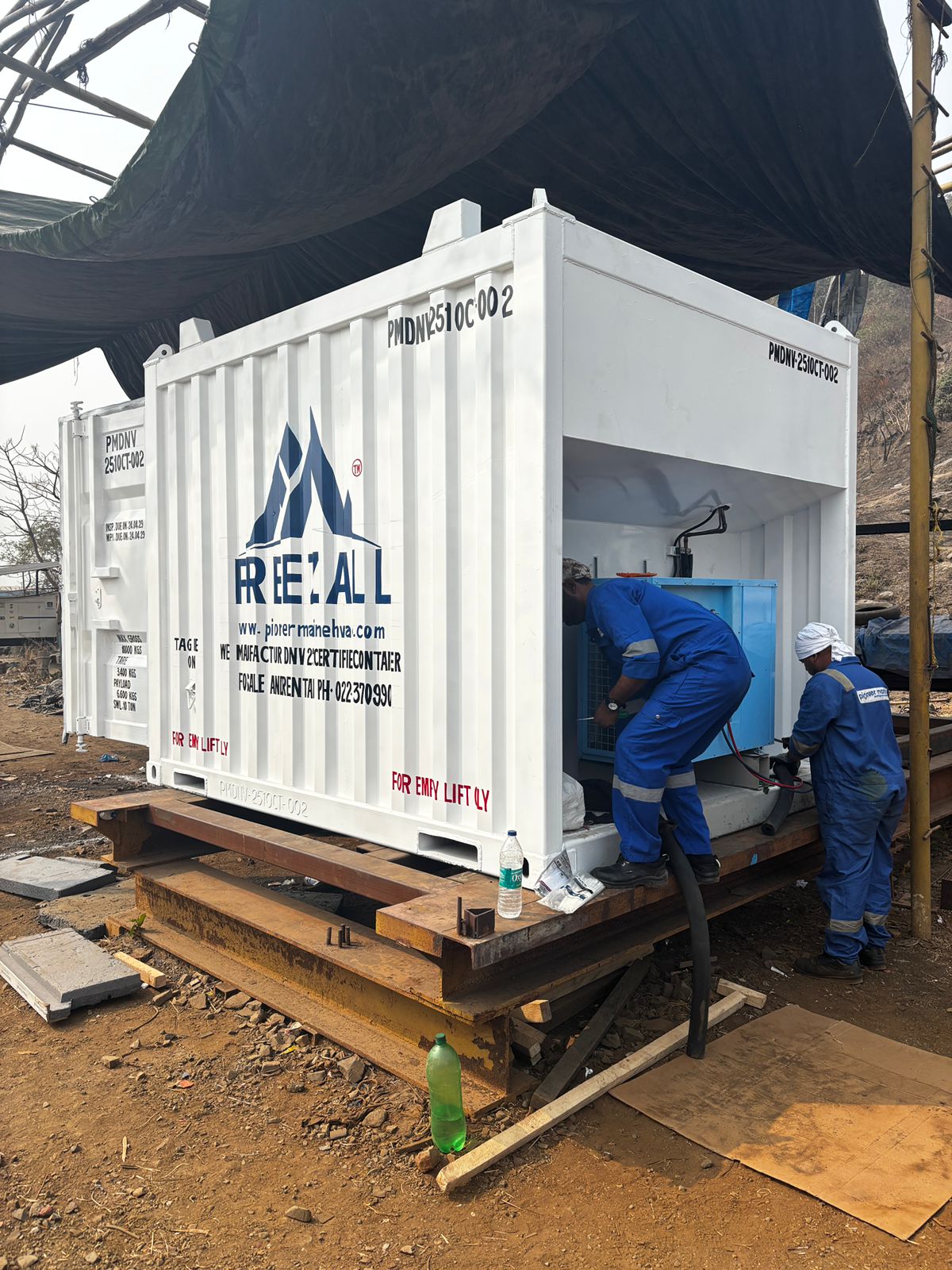

Reefer Containers

This container type is designed for the transport and storage of temperature controlled products. Goods can be kept at a certain temperature for long periods of time by means of built in machinery.

Details:

suitable for transport and storage
fitted with an electric or diesel cooling / heating unit
insulated panels, roof and doors
able to maintain temperatures ranging from -25°C to +30°C in conditions whereby the ambient outside
temperature can be up to +50°C

inside dimensions
length mm	5459
length ft	17' 10 7/8''
width mm	2295
width ft	7' 6 3/8''
height mm	2268
height ft	7' 5 1/4''
capacity cbm	28.4
capacity cbft	1003

weights
tare kg	3050
tare pd	6720
max. payload kg	27430
max. payload pd	60480
max. gross kg	30480
max. gross pd	67200

certification
ISO size type	22R1
ISO size group	22RT

outside dimensions
length mm	6058
length ft	19' 10 1/2"
width mm	2438
width ft	8'
height mm	2591
height ft	8' 6"

door opening
width mm	2291
width ft	7' 6 1/8''
height mm	2259
height ft	7' 4 7/8''
width side door mm	./.
width side door ft	./.
height side door mm	./.
height side door ft	./.

roof opening
height mm	./.
height ft	./.
width mm	./.
width ft	./.

All containers are provided with:

Slings
MPI (Magnetic Particle Inspection) certificates
Load test certificates
DNV Certification

Logistics Solutions:
We offer end-to-end logistics for transportation of dry and reefer cargo, equipment, and more—ensuring safe, timely delivery to offshore and petroleum industry sites.
